Ever found yourself in need of a compact, modular and versatile CAN-bus operated switch module?

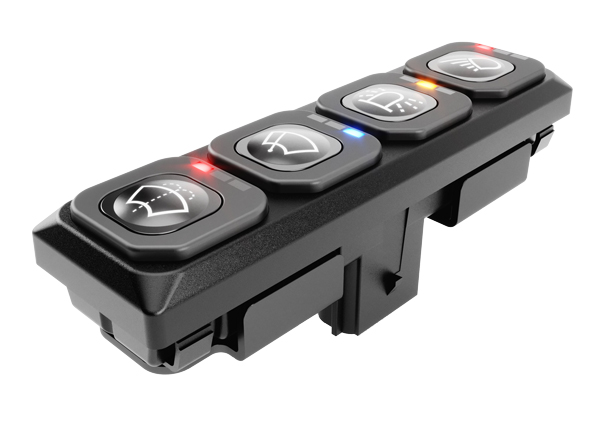

KeyCAN is a new concept of compact, modular and versatile keyboard that can meet any demanding dashboard or command plate.

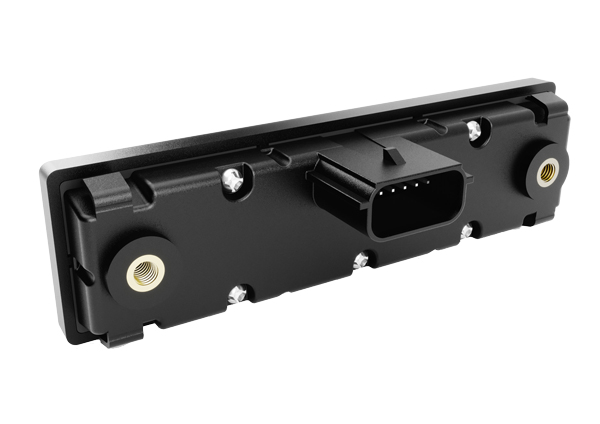

Every module comes with 1 CAN-bus Port for direct connection to ECU and Display.
Each switch is equipped with nr. 03 RGB LEDs whose color and tone can be easily set via software.

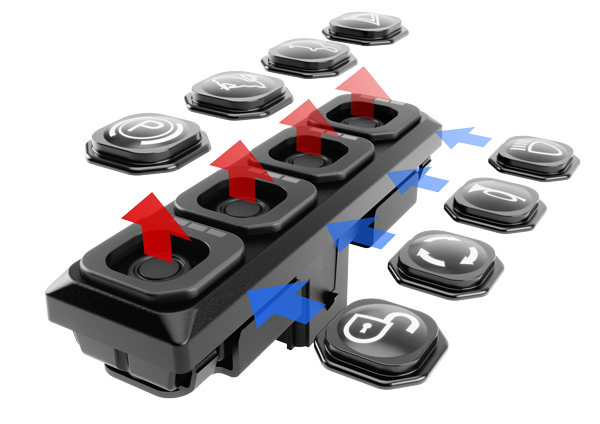

Plastic plate symbol are fully and easily customizable by laser.
Every place is a good place for a Keycan
Keycan can be customized even last minute while on the machine assembly line and is fully programmable via CAN-bus, equipped with stack J1939.

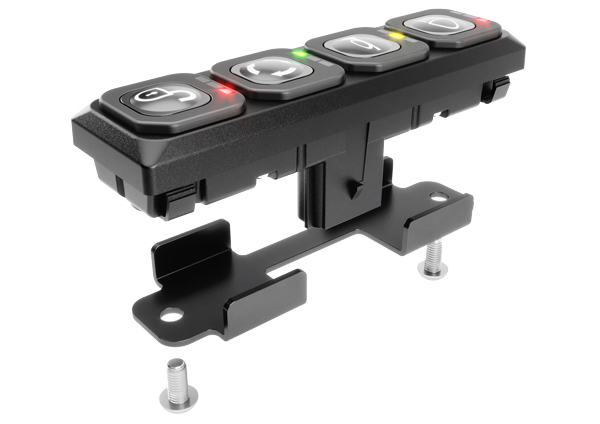

Keycan can be installed both horizontal and vertical.

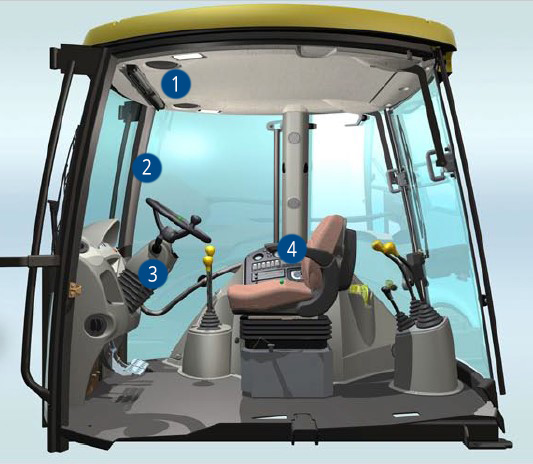

1.
Roof Headliner
2.
Vertically on the pillar
3.
Steering column
4.
Multifunction armrest or side panel
APPLICATION EXAMPLES

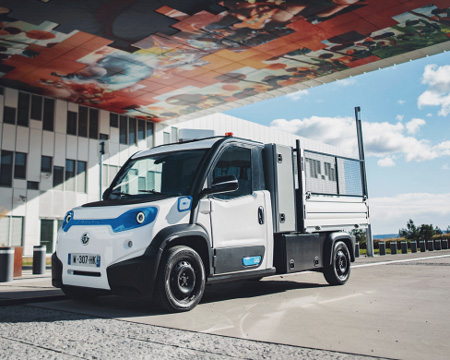

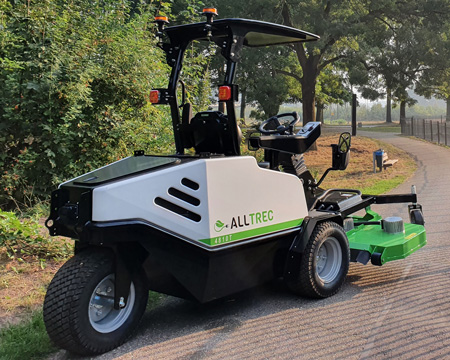

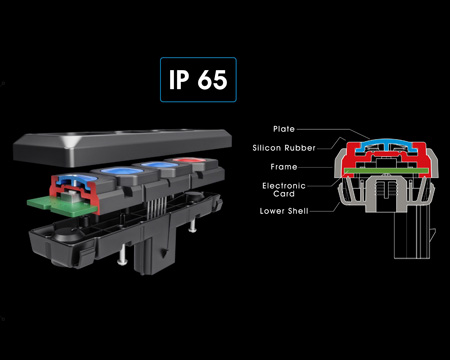

Keycan can be installed on any off-highway vehicle and machine, equipped with/without cabin, thanks to its IP65 protection on the cover.
