D100TFT

D100TFT is a new concept of 100mm Ø instrument.
It sports a consolidated shape and a high visible TFT color display. Through 1 CANBUS line, several I/Os and 12 LED indicators, D100TFT can be used to command any function

Category: Instrument panels
Share:
  • Description
Description

Main Technical Features

  • DISPLAY: COLOR IPS 2,4” 240X320 700nits
  • 12 LED indicator
  • 2 silicon pushbutton
  • 1 CANBUS ports
  • 15 DIGITAL INPUT
  • 2 RESISTIVE
  • 2 frequency INPUT (0-10KHz, PICKUP, PNP, NPN)
  • 2 HSD OUTPUT 4A
  • 1 buzzer 90dB @30cm

DOWNLOAD

Tecnical Brochure
3D Model

Block Diagram & Pin out

PINFunction
1Digital INPUT/HSD 5A (*)
2Resistive INPUT
3Resistive INPUT
4Digital INPUT
5Digital INPUT
6Digital INPUT
7Digital INPUT
8Digital INPUT
9Digital INPUT
10Digital INPUT
11Digital INPUT
12Digital INPUT
13Digital INPUT



PIN Function
14 Digital INPUT
15 Frequency INPUT
16 Digital INPUT
17 Digital INPUT/UART TX TTL OUT (**)
18 Digital INPUT/UART RX TTL OUT (**)
19 VCC (+30)
20 Frequency INPUT
21 CAN H
22 CAN L
23 GND
24 OUT1 (HSD 5A)
25 VCC (+30)
26 IGNITION KEY (+15)

(*) function selectable via FW
(**) function selectable in factory

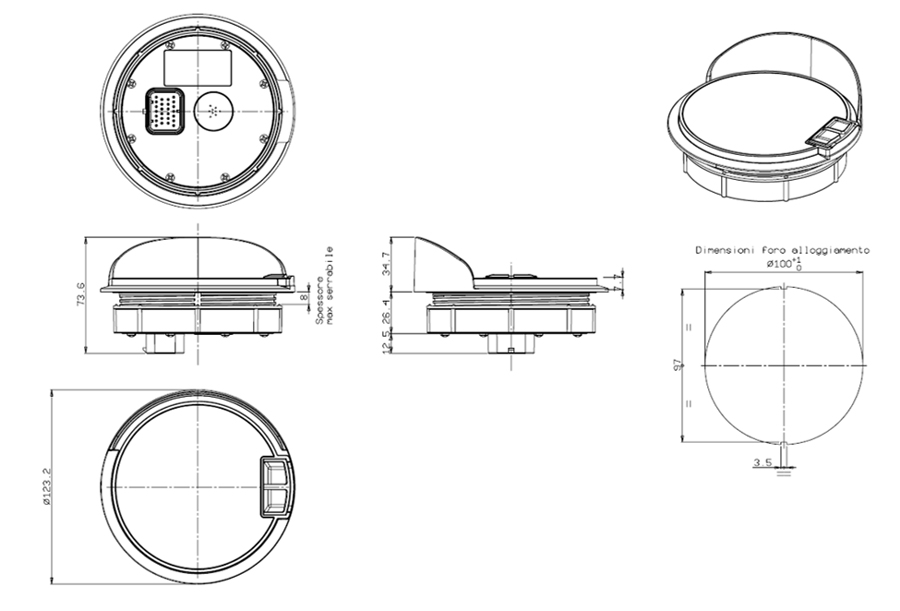

OVERALL DIMENSION

WITHOUT SUN PROTECTION

WITH SUN PROTECTION
